StarForce 433M Receiving Module is a coded receiving module which integrates highly sensitive wireless receiving chip and encoding chip. It matches the 433M remote control and outputs high level signal from D0-D3 pin. The module is compact and has a long receiving distance. It can be widely used in various low-cost receiving scenarios.
Remote control parameters
| Parameter type | Characteristics |
|---|---|
| Working voltage | 12V |
| Operating current | ≤10mA |
| Frequency | 433MHz |
| Transmit power | ≥10mW |
| Remote control distance | 100m (measured in open ground) |
| Modulation mode | Dial code |

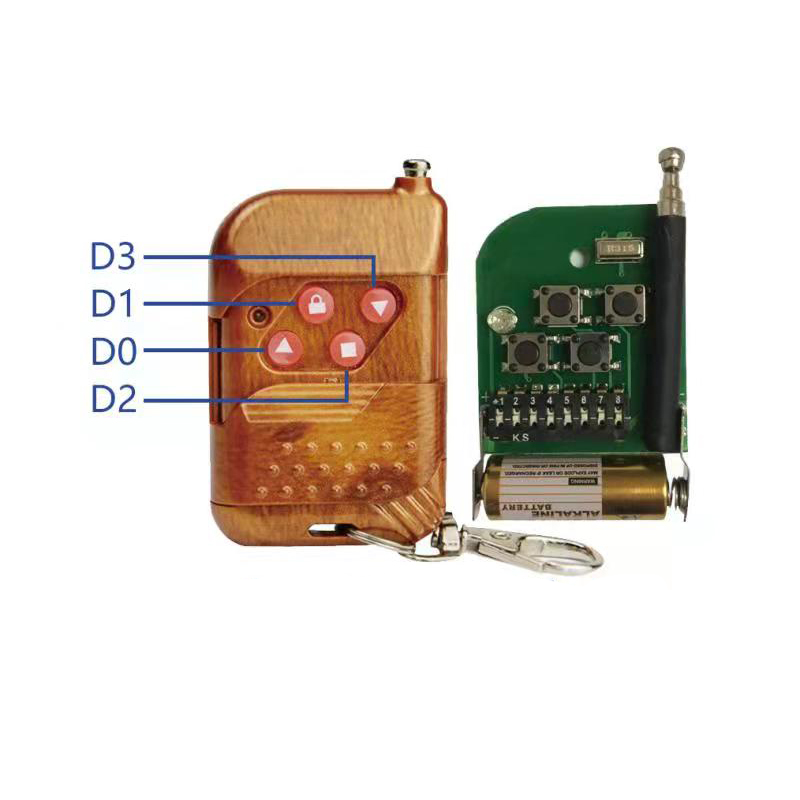

| Key pattern | Up and down arrows, locking stop; The up arrow corresponds to the receiving module d0; The down arrow corresponds to the receiving module D3; Lock the corresponding receiving module D1; Stop corresponding receiving module D2 |
| Work environment | -15/+75 ° C |
Receiving module parameters
| Parameter type | Characteristics |
|---|---|
| Working voltage | DC3.3V-5V |
| Operating current | 3mA |
| Frequency | 433M |
| Size | 19 * 36MM |
| Fixing hole | 2mm diameter |
| Chip | Default sc2272-m4 |
| Sensitivity | -108DBM |
| Speed | MAX 10 KB/S |
| Operating mode | M4 (inching), L4 (interlocking) and T4 (self-locking) can only select one of these functions. Inching is the default. Other modes need to be customized by contacting customer service |
| Address code | Pad code |
| Remote control press | D0, D1, D2 and D3 output high level, and low level when not pressed |
| External LED lamp | LED+、LED- |
| Receiving distance | No antenna >50m (open land without interference), with antenna >100m (open land without interference) |
| Antenna | No antenna by default. If antenna is required, purchase it separately |
The receiving module and the remote controller of xingyuanli 433M are in the default coding state at the factory. The received goods can be used directly. If you need to use your own coding, you can use 20K resistance welding to the corresponding position of the receiving module, and then dial the code of the remote controller to the corresponding position.
For example, 20K resistor is welded on the +1 position of the Star Force 433M receiver. At this time, it is only necessary to turn the dial 1\\e of the remote control to the + position to complete the stacking.
