Fan control module

Share to:

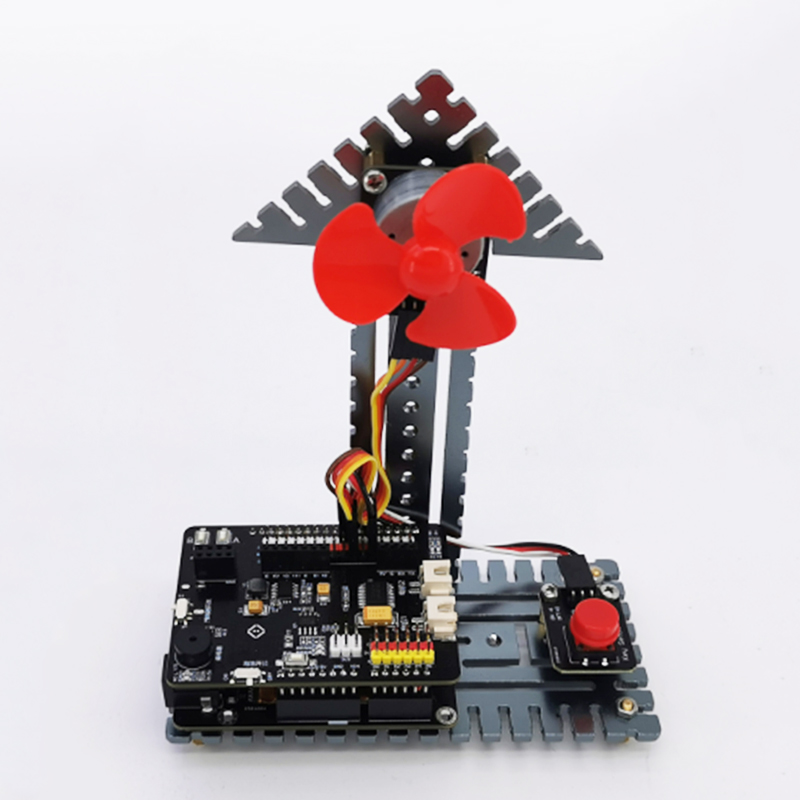

The fan control module can be used with other small modules to do some interesting applications (electric fan, heat dissipation, propeller) or DIY small production.
Availability:

Fan control module

Product introduction

The fan control module can be used with other small modules to do some interesting applications (electric fan, heat dissipation, propeller) or DIY small production. The forward and reverse rotation of the fan module can be realized by switching the high and low levels of the two digital ports of Arduino, without additional motor drive board, and there are two states: horizontal and vertical.


Product parameters

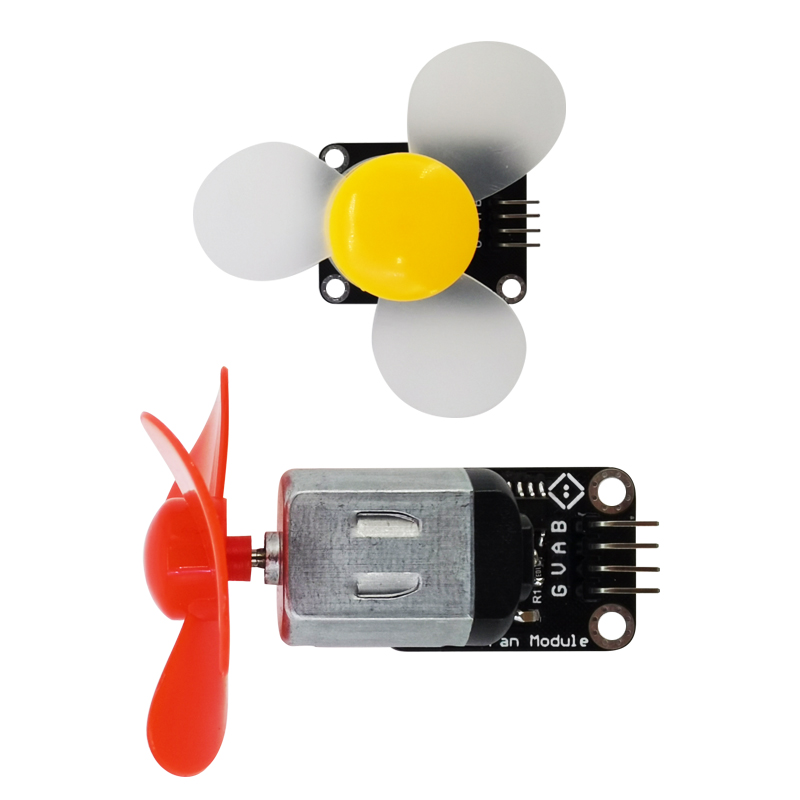

Horizontal fan

Parameter type Characteristics
Specification 30×38mm
Positioning aperture 3mm
Control signal Digital signal
Working voltage 3.3-5V
Interface 4P
Line sequence G V A B
Motor size Diameter 24.5mm  12.2mm height
Motor speed 3000r/min
Clockwise forward transmission A=1,B=0
Counter clockwise rotation A=0,B=1

Vertical fan

Parameter type Characteristics
Specification 22×58mm
Positioning aperture 3mm
control signal digital signal
Working voltage 3.3-5V
Interface 4P
Line sequence G V A B
Motor size Length 25mm  Width 15
Motor diameter 20mm
Clockwise forward transmission A=1,B=0
Counter clockwise rotation A=0,B=1

Single chip microcomputer wiring

接线方式

Maker:Button fan

风扇

Previous:
Next:
