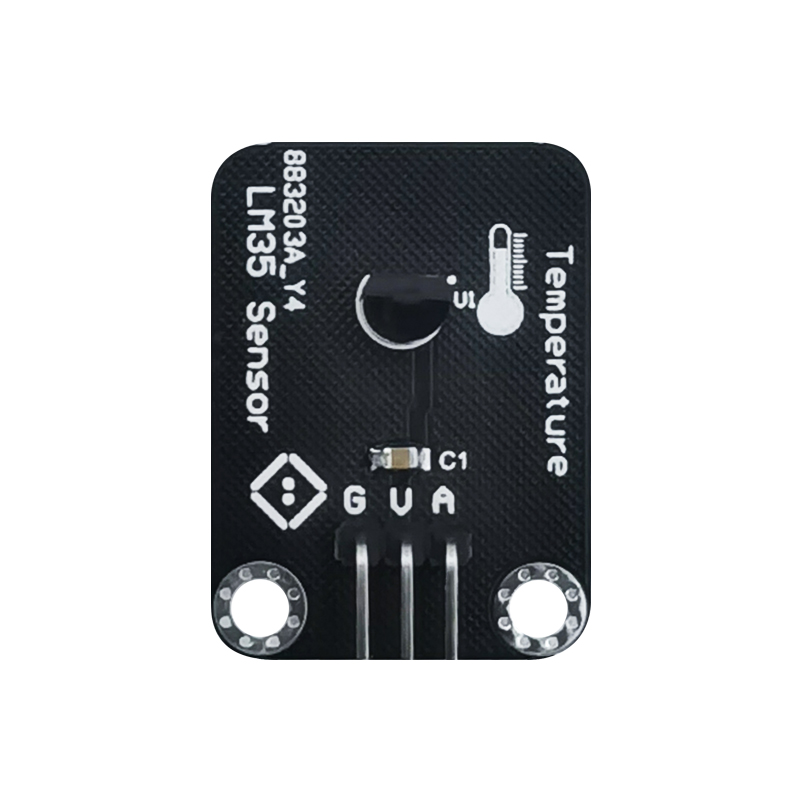

LM35 linear temperature sensor is a widely used temperature sensor, which has a large operating temperature range. The module is suitable for many special occasions. The measurement temperature range is from 0 to 100 degrees C, the output voltage is proportional to the temperature linear relationship, the output is 0V at 0 degrees C, the output voltage is increased by 10mV for every 1 degree temperature rise. LM35 linear temperature sensor is used in combination with other main controllers such as Arduino. Interactive effects related to environmental temperature perception can be easily achieved.
| Parameter type | Characteristics |
|---|---|
| Specification | 22×30mm |
| Positioning aperture | 3mm |
| Control signal | Analog signal |
| Working voltage | 3.3-5V |
| Interface | 3P |
| Line sequence | G V A |
| sensitivity | +10mv/℃ |
| temperature range | 0℃~100℃ |
LM35 linear temperature sensor is a widely used temperature sensor, which has a large operating temperature range. The module is suitable for many special occasions. The measurement temperature range is from 0 to 100 degrees C, the output voltage is proportional to the temperature linear relationship, the output is 0V at 0 degrees C, the output voltage is increased by 10mV for every 1 degree temperature rise. LM35 linear temperature sensor is used in combination with other main controllers such as Arduino. Interactive effects related to environmental temperature perception can be easily achieved.
| Parameter type | Characteristics |
|---|---|
| Specification | 22×30mm |
| Positioning aperture | 3mm |
| Control signal | Analog signal |
| Working voltage | 3.3-5V |
| Interface | 3P |
| Line sequence | G V A |
| sensitivity | +10mv/℃ |
| temperature range | 0℃~100℃ |
