Water level sensor

Share to:
The water level sensor is a simple and easy-to-use, small and light, cost-effective water level / water drop identification and detection sensor. It measures the size of water drops / water volume through a series of exposed parallel wire traces, so as to judge the water level.
Availability:

Water level sensor

Product introduction

The water level sensor is a simple and easy-to-use, small and light, cost-effective water level / water drop identification and detection sensor. It measures the size of water drops / water volume through a series of exposed parallel wire traces, so as to judge the water level. Easily complete the conversion from water volume to analog signal, and the output analog value can be directly applied by the function in the program to achieve the effect of water level alarm. Low power consumption and sensitivity are another major feature.


Product parameters

Parameter type Characteristics

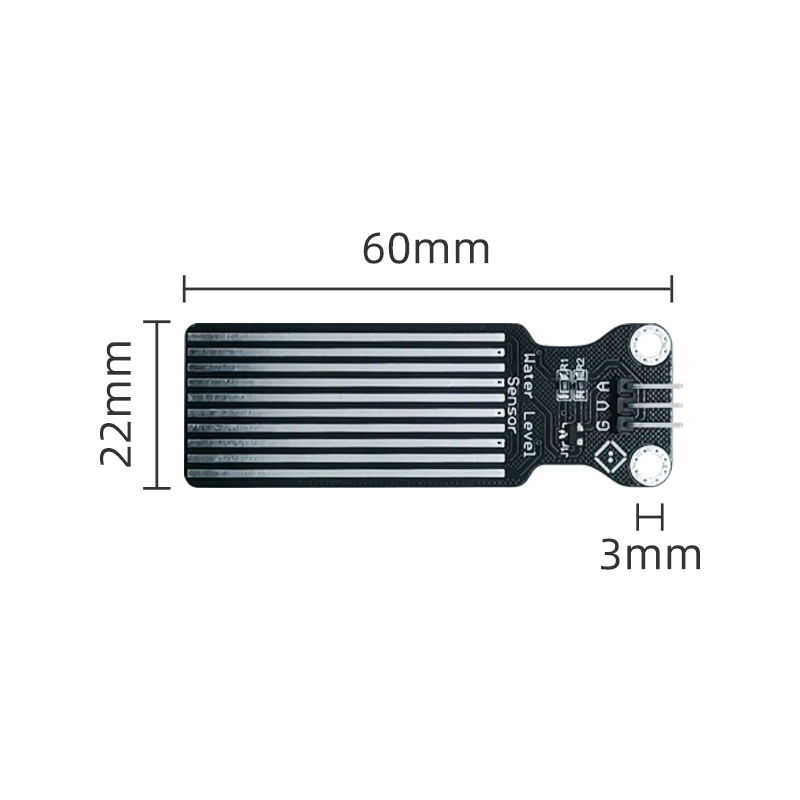

Specification 22×60mm
Positioning aperture 3mm
Control signal Dnalog signal
Working voltage 3.3-5V
Interface 3P
Line sequence G V A
Working humidity 10% - 90% non condensing
working temperature 10℃-30℃

Single chip microcomputer wiring

接线方式

Maker:Automatic pet water feeder

装置
